THE APEX

DIY Tiny House Frame: Engineered Frame + Detachable Registered Trailer

For builders, DIYers, and owner-builders: a professionally engineered, RPEQ-certified tiny house frame on a registered 3.5 T trailer. You finish the interior and cladding to your specs

FRAME & STRUCTURE

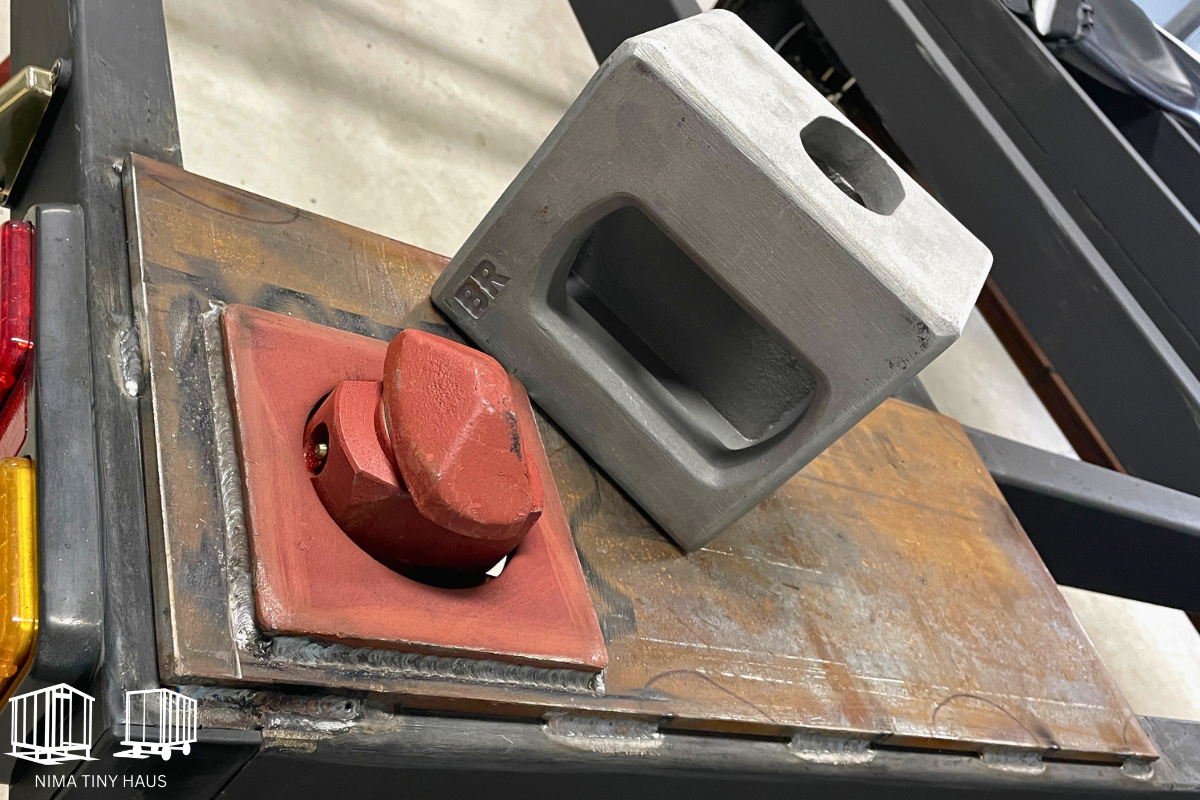

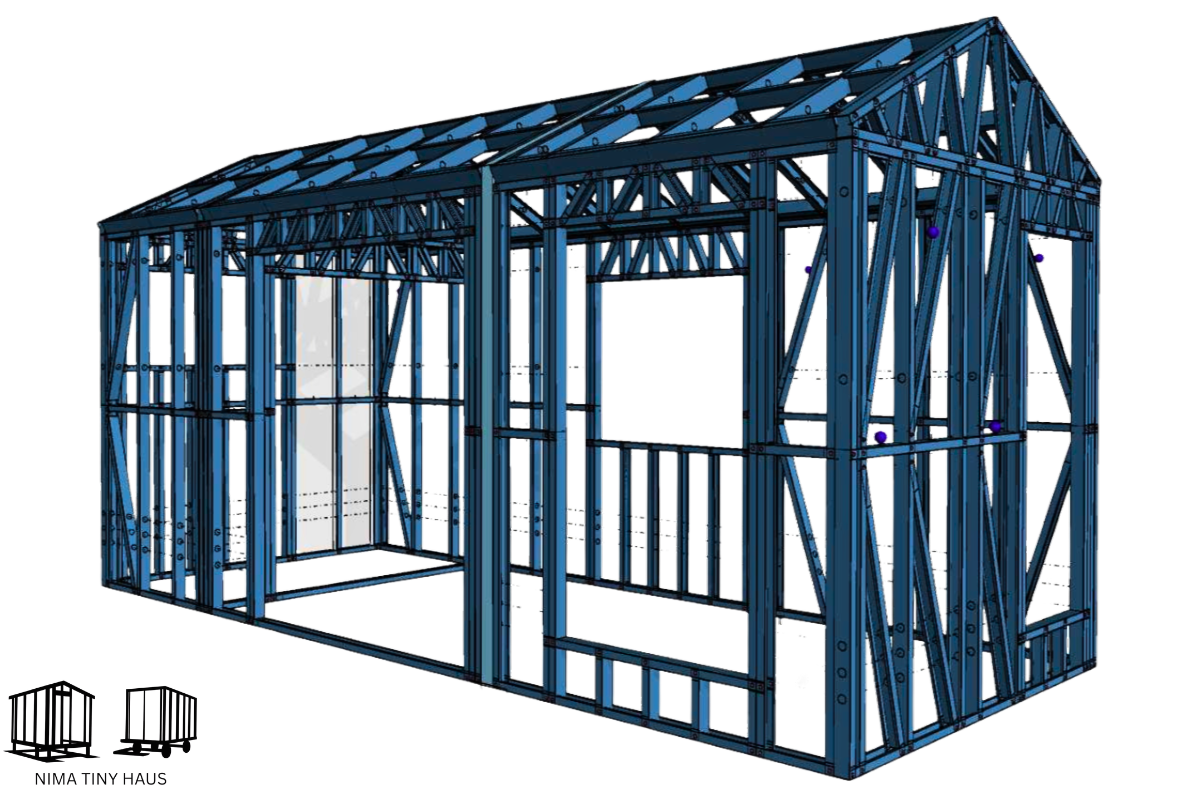

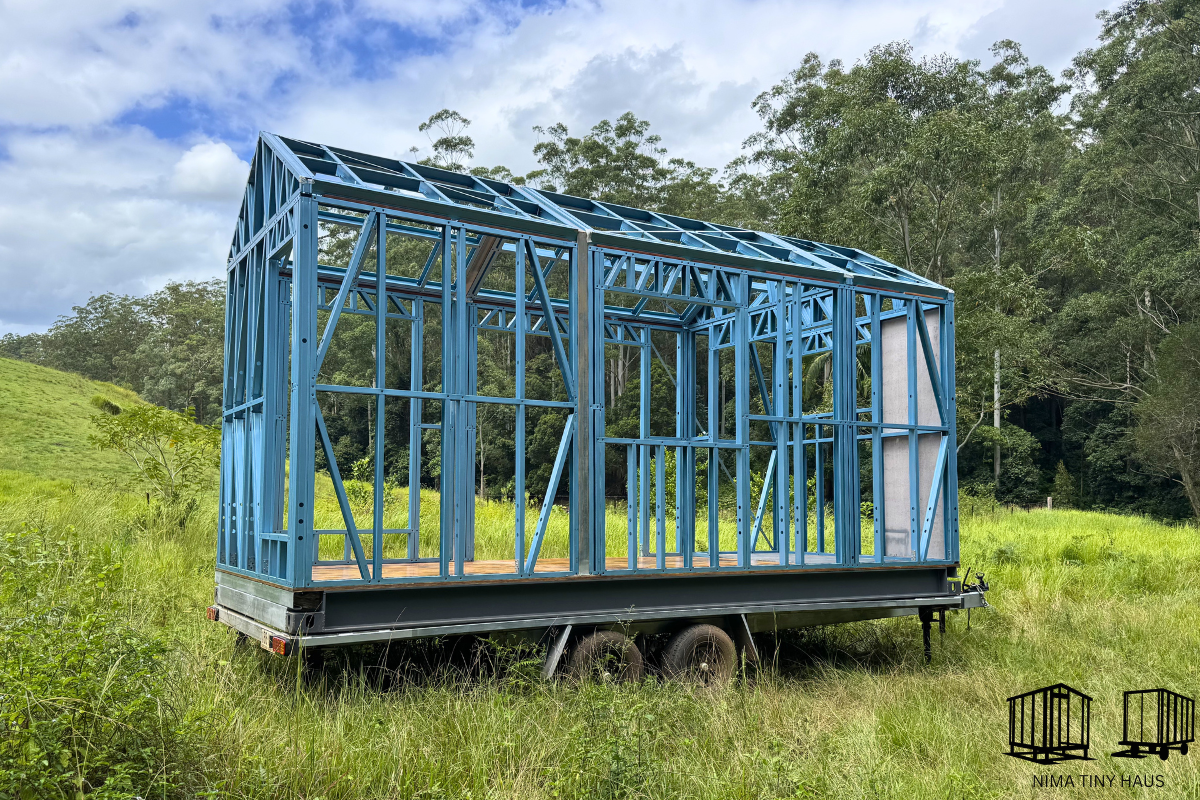

• RPEQ Engineered Truecore steel frame - N3 wind classification • Fully assembled and detachable from trailer - need a deck?

• Form 15 Compliance Certificate (frame and chassis floor-frame)

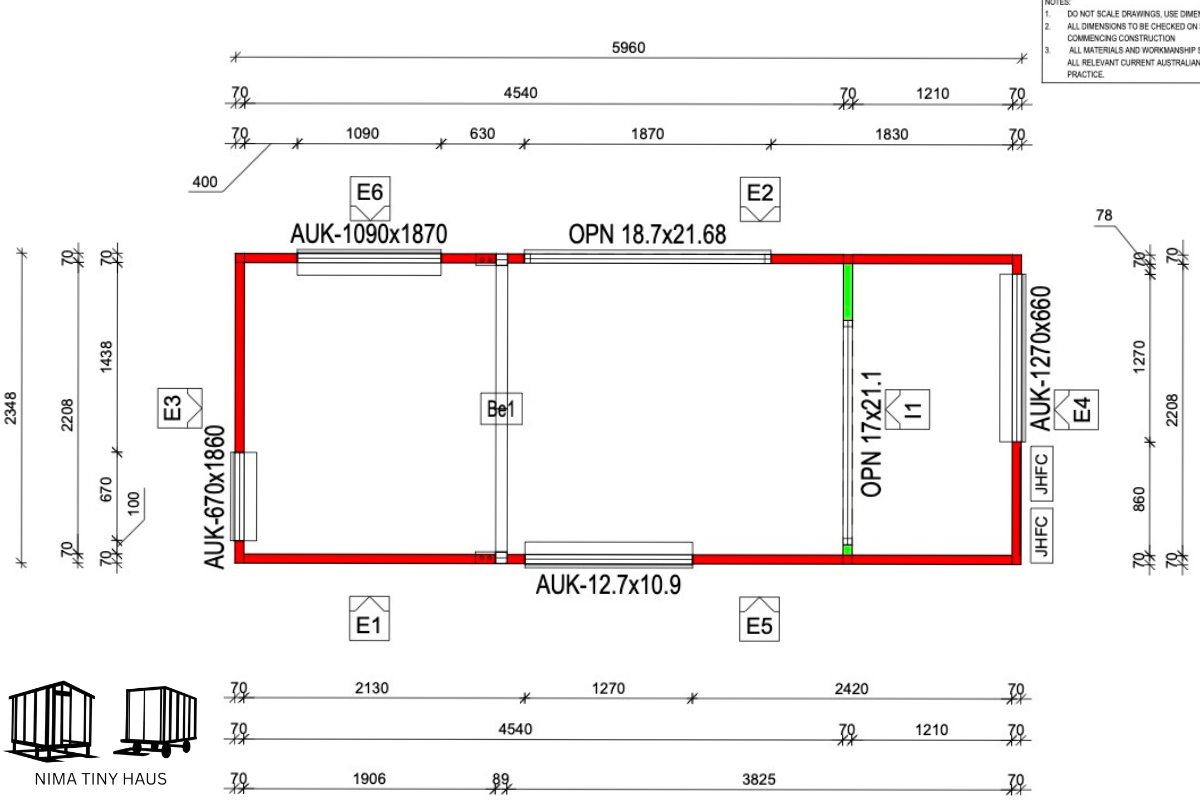

• Gross Floor Area: 14 m² | L 5.96 x W 2.35 m FLOOR SYSTEM

• RPEQ Engineered insulated chassis floor-frame (detachable from trailer, includes skids)

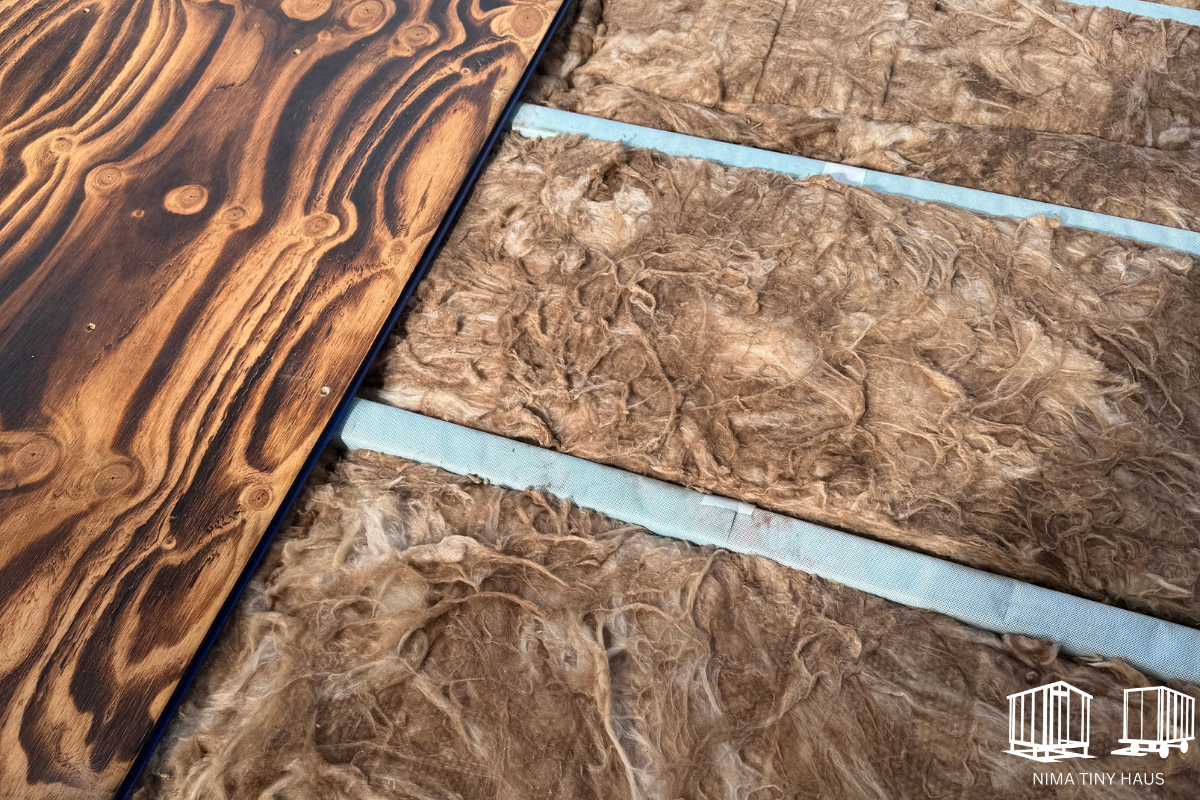

• R7.0 under-floor insulation with breather membrane

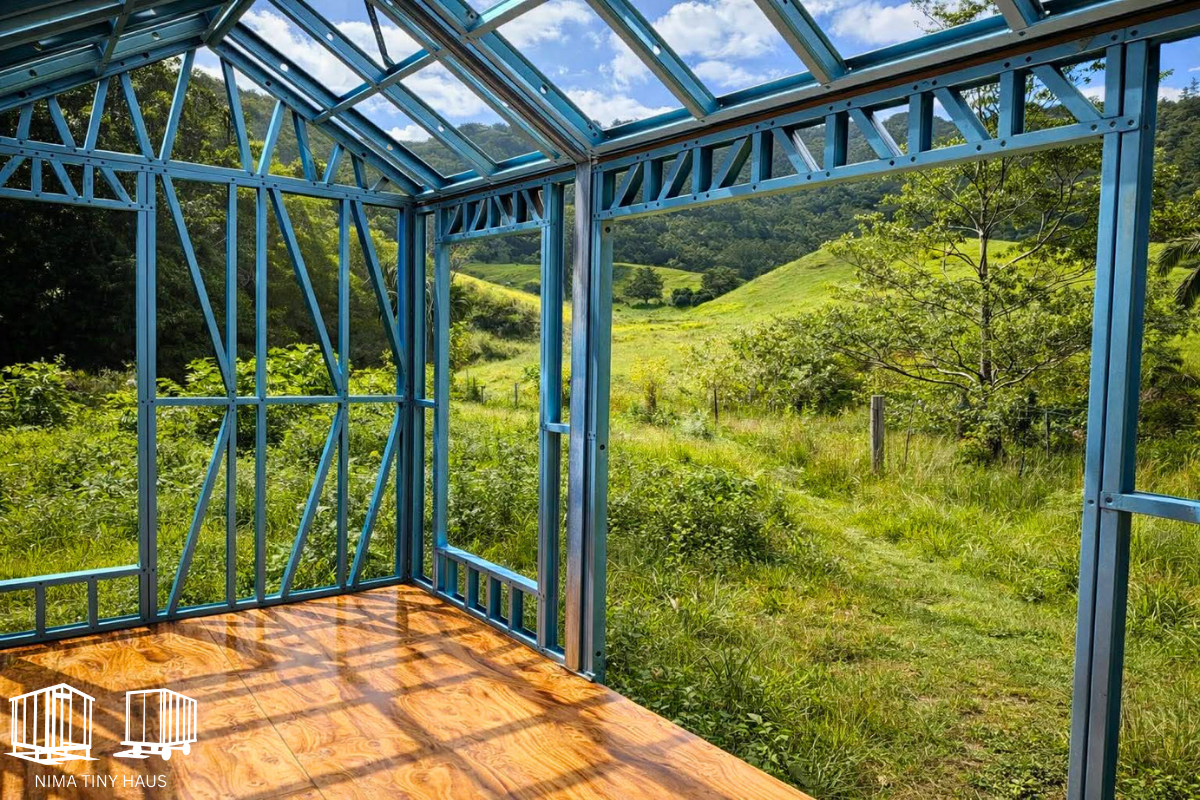

• Yakisugi T&G treated 17mm plywood flooring (fully finished)

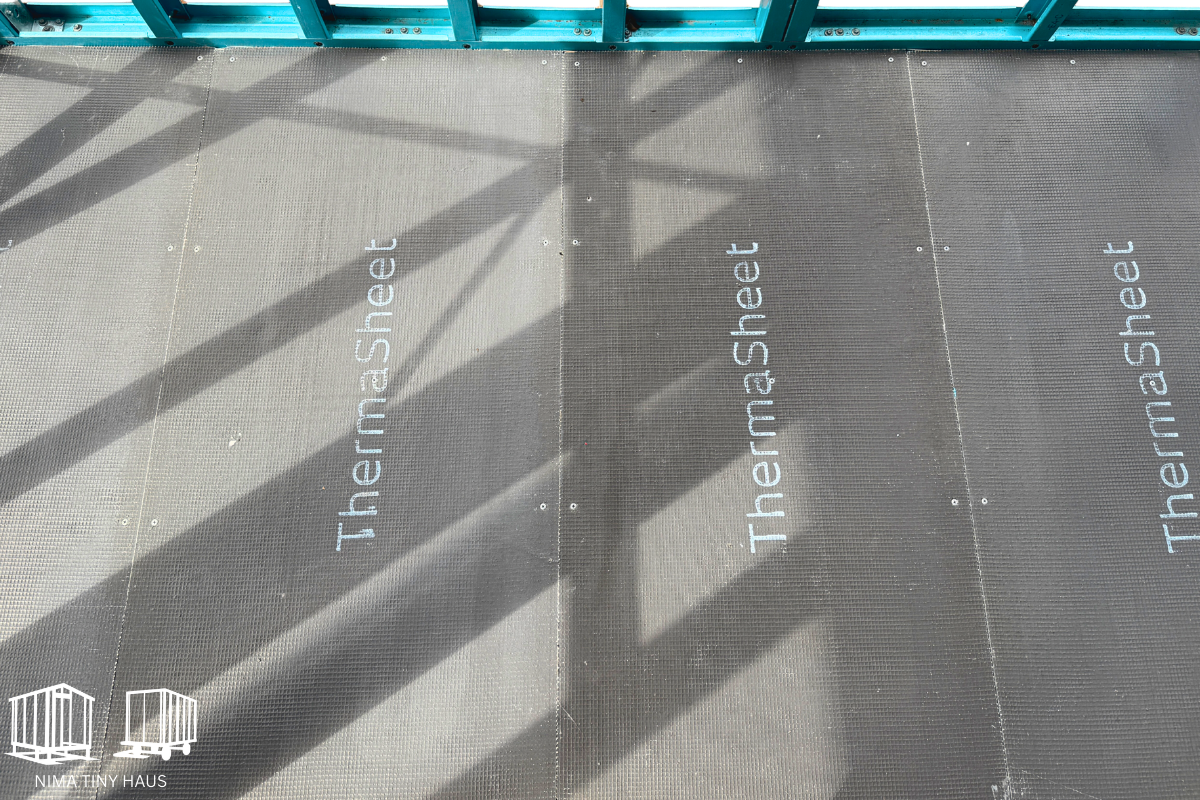

• Bathroom: insulated tile backing board on moisture-resilient treated 17mm plywood

INTERIOR SPACES

• Living/Kitchen NFA: 10.0 m²

• Bathroom NFA: 2.7 m²

• Floor-to-ceiling height: 2.4 m (3.17 m to apex)

TRAILER & REGISTRATION

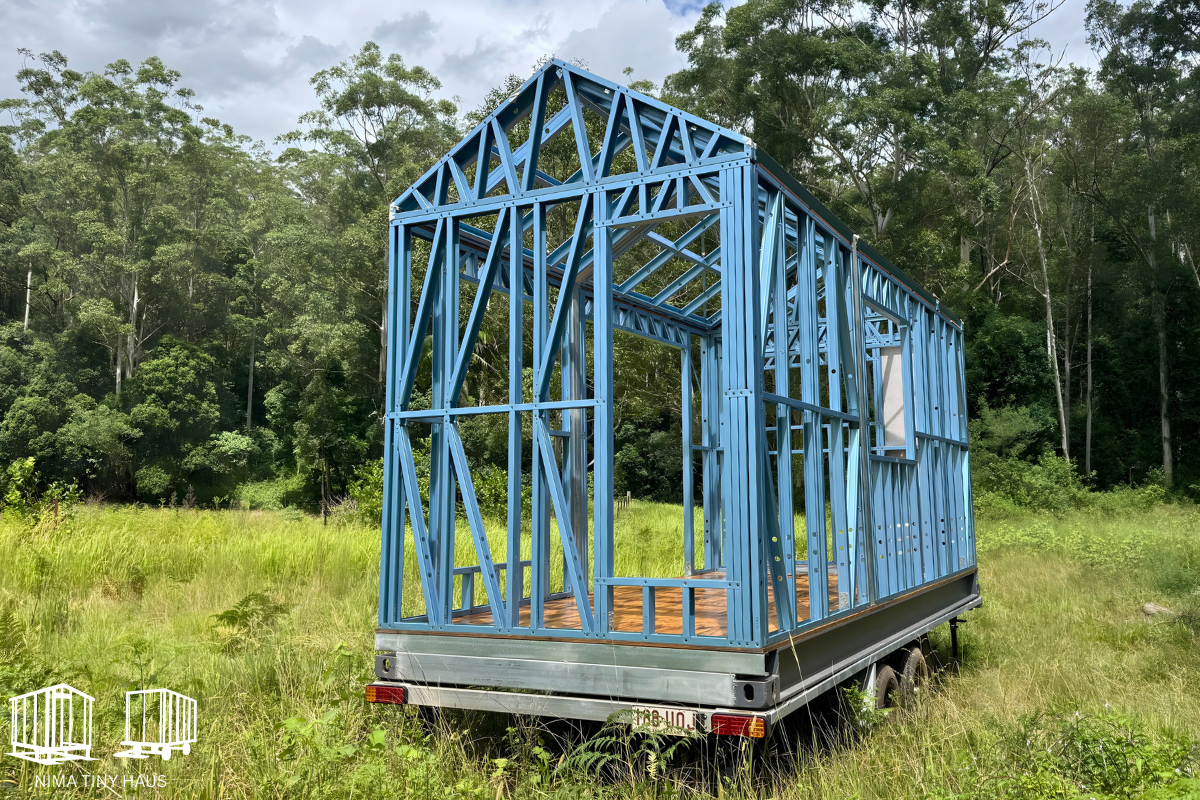

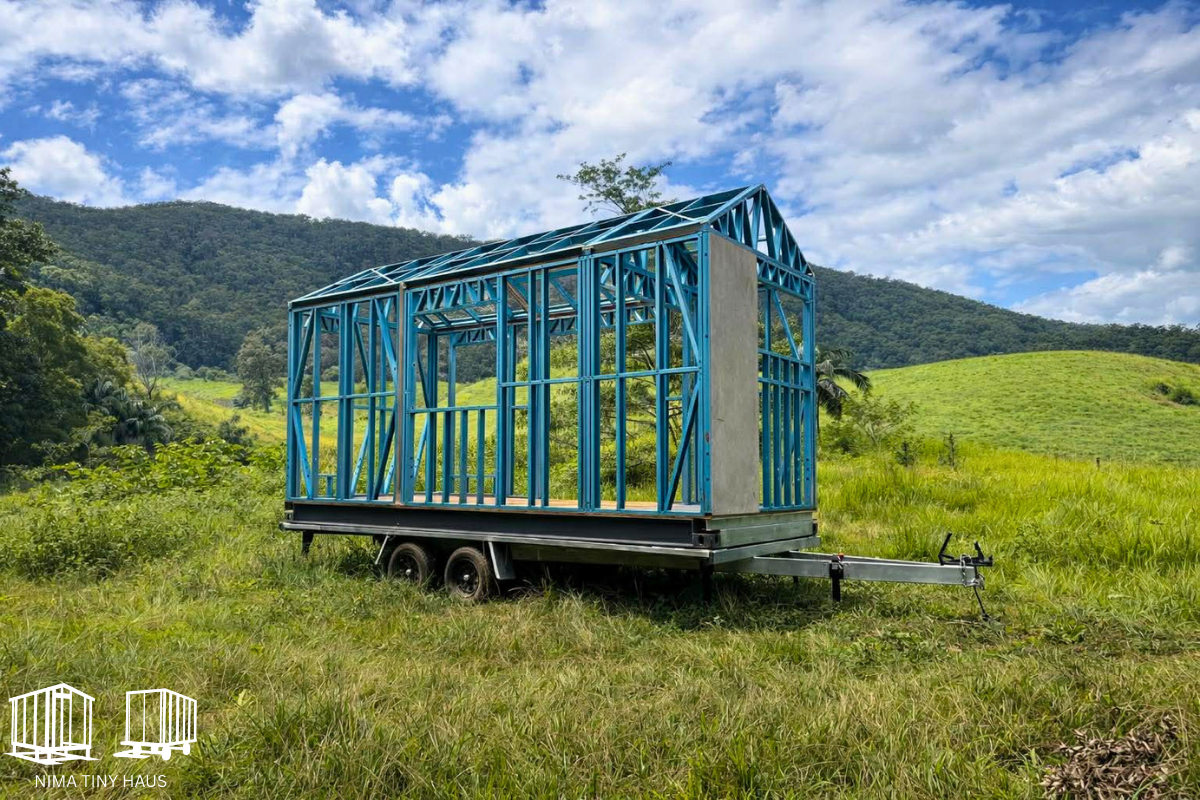

• New engineered 3.5T dual-axle trailer

• Registered with VIN

• Includes breakaway system OVERALL HEIGHT

• Ground to trailer/deck: 0.68 m

• Tiny House structure: 3.17 m

• Total height: 3.43 m PRICING & SUPPORT

• Price includes GST (excludes delivery)

• Delivery assistance available

• Free consultation on your DIY project
